STM32U575I-EV

Rev.C
STMicroelectronics

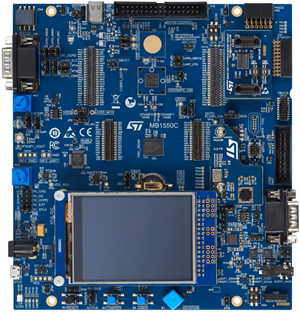

STM32U575I-EV

STM32 Evaluation development board with STM32U575AIIx MCU

  • Debug Interfaces
    JTAG/SW 20-pin JTAG (0.1 inch connector)
    JTAG/SW 20-pin Cortex debug + ETM Trace (0.05 inch connector)
    JTAG/SW 10-pin JTAG STDC14 and MIPI10 interface (0.05 inch connector)
    JTAG/SW 10-pin TAG probe TC2050-IDC-NL
    ST-Link Micro-USB
    • Debug
      Integrated Debug Adaptor 1 x On-board ST-LINK/V3E
    • Other
      Crystal Oscillator 16 MHz Crystal Oscillator
      Other Feature 1 x SAI audio codec
    • Power
      Power Supply 5 V .. 0 V USB Powered
      Power Supply 3 V .. 5 V External Supply
      Battery 1 x Coin-battery cell holder for power backup
    • Memory
      RAM 1 x 16-Mbit SRAM
      Flash 1 x 512-Mbit Octo-SPI Flash
      Other Memory Type 1 x 128-Kbit I2C EEPROM
      SD/microSD/MMC Card Holder 1 x SDIO interface microSD card
      Other Memory Type 1 x Smartcard socket
    • Connectors
      USB 1 x Full-Speed USB Type-C Sink and Source power capability, with Power Delivery controller interface (UCPD)
      CAN 1 x FDCAN
      RS232 1 x RS-232 communication interface
      Other Connector Type 4 x Extension connector
      Other Connector Type 1 x MEMS extension connector
      Other Connector Type 2 x OCTO-SPI connector module
      Other Connector Type 1 x Camera module expansion connector
      Other Connector Type 2 x STMod+ expansion connectors
      Other Connector Type 1 x Pmod expansion connector
      Other Connector Type 1 x Motor-control connector
      Other Connector Type 1 x EXT_I2C connector
    • Controls
      Joystick 1 x 5-position Joystick
      Push-buttons 5 Push-Buttons for Reset, Tamper, User and Touchkey
      Potentiometer 1 x Analog Voltage Control for ADC Input (potentiometer)
    • Camera
      Camera 1 x CMOS camera QSXGA 5 megapixels
    • Display
      LEDs 4 x LEDs: COM, Power, User LEDs
      GLCD 240 x 320 2.8-inch 320x240 TFT color LCD with capacitive touch panel
    • Audio
      Line In 1 x Audio CODEC with Stereo Line-In/Out and Speaker/Microphone
      Microphone 1 x ST-MEMS digital microphone
    • Sensors
      Accelerometer 1 x ST-MEMS 3D digital Accelerometer
      Gyroscope 1 x ST-MEMS 3D Gyroscope
      Ambient Light Sensor 1 x Light-dependent resistor
