B-U585I-IOT02A

Rev.C
Download CMSIS Pack

CMSIS-Pack is a delivery mechanism for software components and device support for embedded and IoT applications. Learn more.

STMicroelectronics
B-U585I-IOT02A
  • Core

    Cortex-M33

  • Debug interface

    ST-Link

  • Device

    STM32U585AIIx

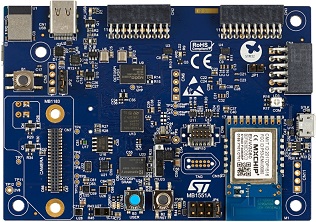

STM32 Discovery development board with STM32U585E MCU

  • Debug Interfaces
    ST-Link Micro-USB
  • Debug
    Integrated Debug Adaptor 1 x On-board ST-LINK-V3E
  • Memory
    Flash 1 x 512-Mbit Octal-SPI Flash memory
    RAM 1 x 64-Mbit octal-SPI PSRAM
    Other Memory Type 1 x 256-Kbit I2C EEPROM
  • Power
    Power Supply 6 V - 0 V USB Powered
    Power Supply 3 V - 5 V External Supply
  • Connectors
    Other Connector Type 1 x 802.11 b/g/n compliant Wi-Fi® module from MXCHIP
    Other Connector Type 1 x Bluetooth Low Energy from STMicroelectronics
    USB 1 x USB Type-C Sink device FS
    Other Connector Type 1 x Camera module expansion connector
    Other Connector Type 2 x STMod+ expansion connectors
    Other Connector Type 1 x Pmod expansion connector
  • Sensors
    Accelerometer 1 x 3D digital Accelerometer
    Gyroscope 1 x 3D Gyroscope
    Other Sensor 1 x 3-axis magnetometer
    Other Sensor 1 x Relative humidity sensor
    Temperature Sensor 1 x Temperature sensor
    Pressure Sensor 1 x Pressure sensor, 260-1260 hPa absolute digital output barometer
    Ambient Light Sensor 1 x Ambient-light sensor
    Other Sensor 1 x Time-of-Flight 8x8 Multizone Ranging Sensor
  • Audio
    Microphone 2 x Digital microphones
  • Other
    Other Feature 1 x Authentication and security for peripherals and IoT devices from STMicrolectronic
  • Controls
    Push-buttons 2 Push-Buttons for Reset and User
  • Display
    LEDs 7 x 2 User LEDs
  • Form factor
    Arduino Formfactor ARDUINO® Uno V3 expansion connectors
