CMSIS-Compiler

2.2.0
Arm

  • Pack Type

    Software Pack

CMSIS Compiler extensions for Arm Compiler, GCC, Clang, and IAR Compiler

Overview

CMSIS-Compiler provides software components that simplify retargeting of standard C run-time library functions.

Application code frequently uses standard C library functions, such as fopen, fwrite, printf(), scanf() and others to perform input/output operations. These functions may as well be used in a multithreaded environment.

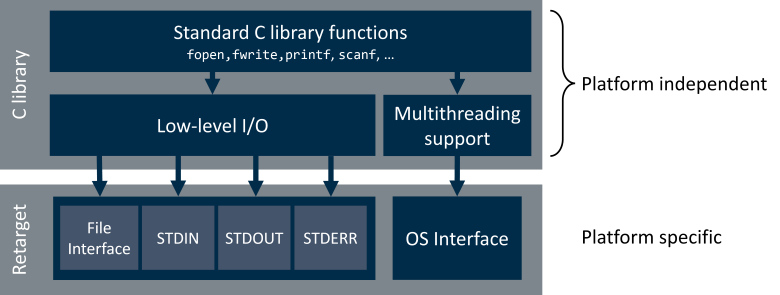

The structure of these functions in the standard C run-time library together with the retarget interfaces is:

Software Structure Overview

Standard C library functions are platform independent and can be easily ported, while the low-level interfaces needs to be tailored to the chosen platform. Generally low-level I/O functions serve to interact with the file system and a serial interface, i.e. terminal. Multithreading support is available for applications that run on top of an RTOS kernel.

CMSIS-Compiler enables platform specific retargeting by providing software components that break down into the following interfaces:

  • File interface that enables reading and writing files
  • STDIN interface that enables standard input stream redirection
  • STDOUT interface that enables standard output stream redirection
  • STDERR interface that enables standard error stream redirection
  • OS interface that enables multithread safety using an arbitrary RTOS

Using CMSIS-Compiler developers can retarget standard I/O streams and file operations to specific platform and enable thread safe operations using RTOS interface.
