  1. Packs
  2. STM32N6xx_DFP

STM32N6xx_DFP

1.1.0
Keil

  • Pack Type

    Device Support

STMicroelectronics STM32N6 Series Device Support

Introduction

The STMicroelectronics STM32N6 Series Device Family Pack (DFP) is a CMSIS-Pack that:

  • Enables compatible tools with device support.
  • Supports Arm Compiler 6 (AC6), GCC, and IAR.
  • Contains System View Description (SVD) descriptions of the peripherals.
  • Debug configuration information.

Template Projects

This DFP contains Templates stub projects that can be used with the CMSIS-Toolbox or Keil Studio.

Template Description
FSBL First Stage Bootloader template solution (CubeMX configurable)
FSBL_LRUN First Stage Bootloader load and run (LRUN) template solution (CubeMX configurable)
FSBL_XIP First Stage Bootloader execute in place (XIP) template solution (CubeMX configurable)

CMSIS-Driver Support

This DFP is tested with the CMSIS-Driver_STM32 pack that implements CMSIS-Driver interfaces using a shim layer to the STM32Cube HAL. The following drivers are supported.

  - component: CMSIS-Driver:Ethernet MAC     # Ethernet MAC Driver for STM32 devices
  - component: CMSIS-Driver:GPIO             # GPIO Driver for STM32 devices
  - component: CMSIS-Driver:I2C              # I2C Driver for STM32 devices
  - component: CMSIS-Driver:MCI              # MCI Driver for STM32 devices
  - component: CMSIS-Driver:SPI              # SPI Driver for STM32 devices
  - component: CMSIS-Driver:USART            # USART Driver for STM32 devices
  - component: CMSIS-Driver:USB Device       # USB Device Driver for STM32 devices
  - component: CMSIS-Driver:USB Host         # USB Host Driver for STM32 devices

CubeMX Support

The device is configured using STM32CubeMX (CubeMX). Refer to CMSIS-Toolbox - Configure STM32 Devices with CubeMX for usage information with csolution projects.

Add this component to your csolution project to connect to CubeMX.

    - component: CMSIS:CORE
    - component: Device:CubeMX                # Component that connects to CubeMX

Important Note:

The DFP does not contain Startup and System Configuration files and does not provide the CMSIS_device_header provided by the CMSIS-Core that defines the registers and interrupt mapping. This files are provided by the CubeMX firmware pack. It is therefore mandatory to use CubeMX when using this DFP as it will pull-in these files and make it accessible.

Usage in VS Code

The VS Code Arm CMSIS Solution extension lets you run CubeMX from the CMSIS Solution View.

  • In the dialog Create New Solution choose a device or board and select a CubeMX template (which contains the Device:CubeMX component).

  • Use Run Generator that is available for the component Device:CubeMX in the CMSIS Solution View. This starts CubeMX and once the configuration is complete, click in CubeMX the button GENERATE CODE. The generated code is imported with file CubeMX.cgen.yml as shown below.

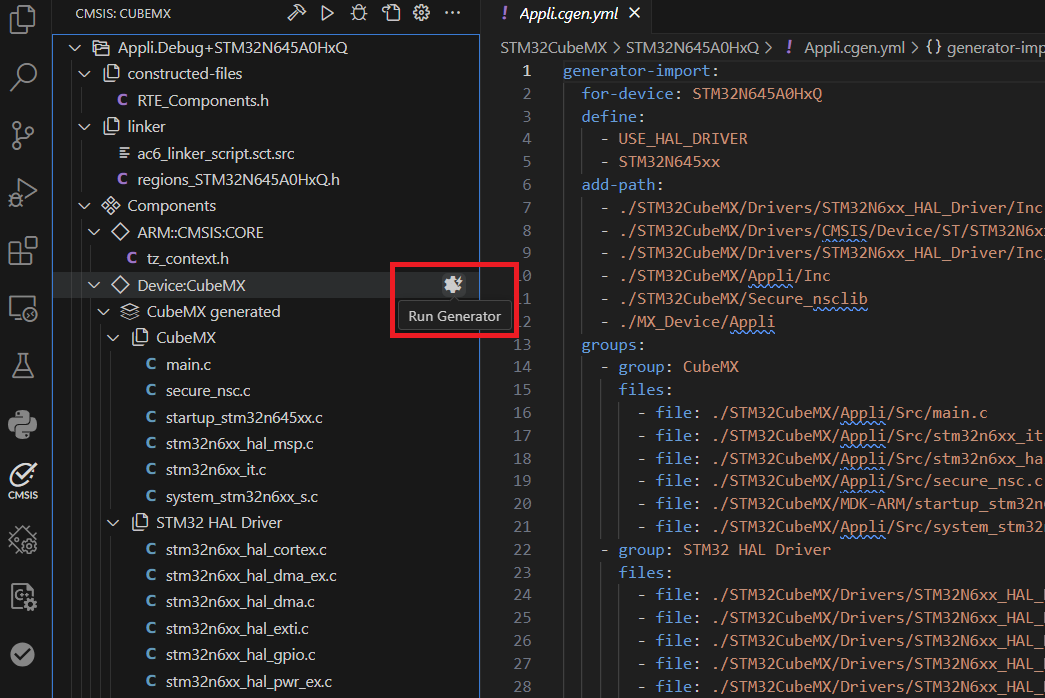

VS Code - CubeMX Integration

Note:

Refer to CMSIS-Toolbox - Configure STM32 Devices with CubeMX for usage information. It contains useful hints, for example for the configuration of an RTOS.
