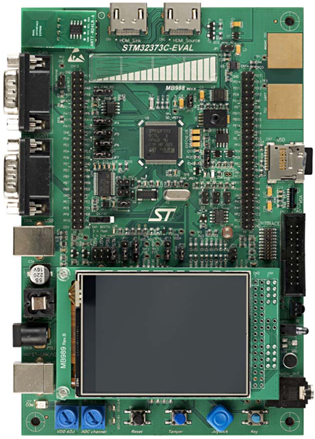

STM32373C-EVAL

STM32 Evaluation development board with STM32F373VCTx MCU

• Debug Interfaces
  JTAG/SW	20-pin JTAG (0.1 inch connector)
  JTAG/SW	20-pin Cortex debug + ETM Trace (0.05 inch connector)
  ST-Link	USB

• Debug
  Integrated Debug Adaptor	1 x On-board ST-LINK/V2

• Other
  Crystal Oscillator	8 MHz 8 MHz Crystal Oscillator

• Power
  Power Supply	5 V .. 0 V USB Powered
  Power Supply	3 V .. 5 V External Supply

• Connectors
  USB	1 x USB 2.0 Full Speed
  CAN	2 x CAN
  RS232	1 x RS232
  Other Connector Type	1 x RF-EEPROM daughterboard expansion
  Other Connector Type	2 x HDMI connector
  Other Connector Type	2 x I/O expansion connector
  Diode	1 x IrDA transceiver

• Display
  GLCD	240 x 320 2.4 inch Color QVGA TFT LCD with resistive touchscreen
  LEDs	4 x LEDs directly connected to port pins

• Controls
  Joystick	1 x 5-position Joystick
  Potentiometer	1 x Analog Voltage Control for ADC Input (potentiometer)
  Push-buttons	4 Push-Buttons for Reset, Tamper and User
  Touch keys/Area	1 x Touch sensing slider

• Memory
  SD/microSD/MMC Card Holder	1 x microSD card
  Other Memory Type	1 x Smartcard socket
  Other Memory Type	1 x 1-Mbit I2C EEPROM

• Sensors
  Pressure Sensor	1 x Pressure sensor
  Other Sensor	1 x PT100 thermal sensor
  Other Sensor	1 x ECG sensor

• Audio
  Line Out	2 x Audio CODEC with Stereo Line-Out and Speaker/Microphone
