DevKit-E7

Gen 2
Alif Semiconductor
DevKit-E7

Overview of DK-E7 HW:D2

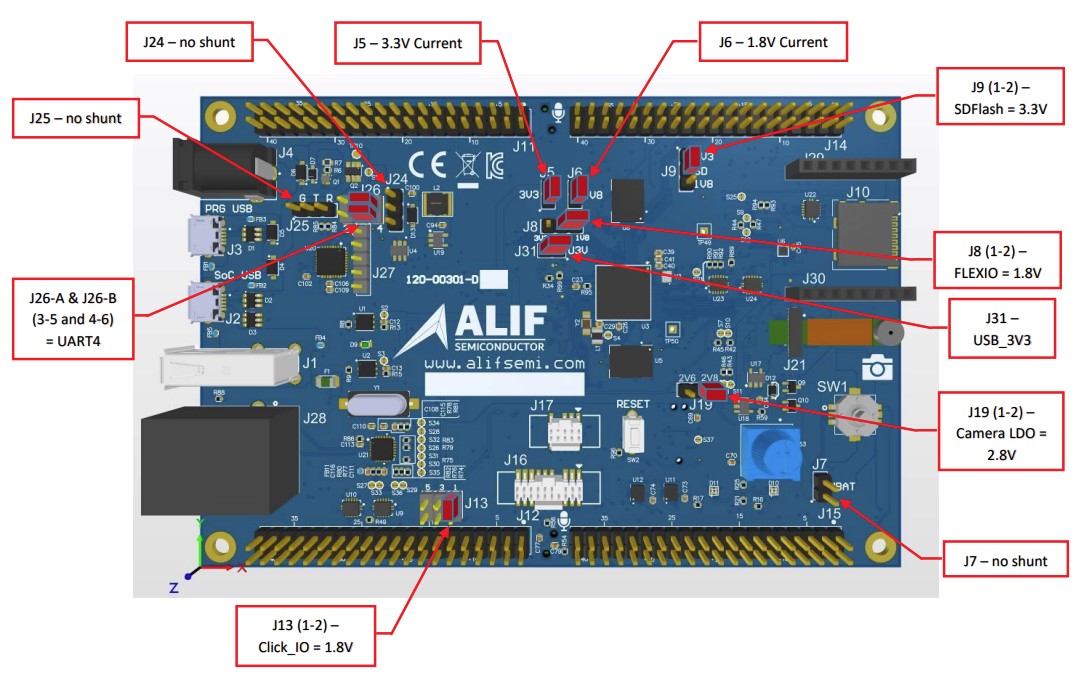

The following picture shows the default board configuration.

Board Top View

Connecting a JTAG Debugger

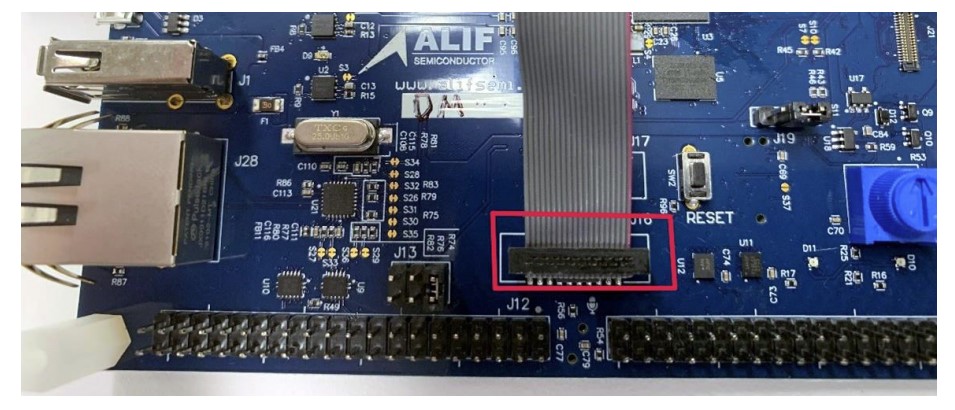

The board provides Cortex Debug connectors (J16 and J17) to connect an external JTAG Debug Probe. The picture below shows a Segger J-Link with 19-pin Cortex-M adapter connected to J16 on the DevKit.

Connecting a Debugger
